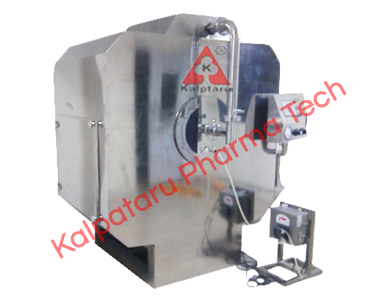

Pellet Coating Machine Manufacturers, Solid Pan Coater for Pallets

Here is a highly efficient and precision based machine from Kalpataru Pharmatech Engineers, the Pellet Coating Machine. We have built this machine using the latest technology that ensures perfect wet granular mixing. Pallets of all sizes and designs can be perfected coated using our finest machine.

We have been in the market for over a decade and our contribution as the top Pellet Coating Machine Manufacturers has been duly noted by our customers. The state of the art Pellet Coating Machine is ideal for both heat sensitive and non-heat sensitive pallets. With high levels of mixing precision, the batch time is cut down to a great extent. The optimised design of the machine is compact and highly energy efficient. The automatic machine releases prays in a controlled manner to coat even small pallets as small the size of 1mm with accuracy.

We at Kalpataru highly regard customer satisfaction and thus to we offer a wide range of customisation options to suit their industrial requirements. Each of our machines are designed and developed abiding by the international safety standards. Get connected with us today and enjoy our unmatched quality.

Technical Details

Model	KSPAC 25L	KSPAC 100L	KSPAC 350L	KSPAC 750L	KSPAC 1500L	KSPAC 2500L
No.of Spray gun	1	2	3	4	5	6
Approximate Working Capacity (depending on tablet , pallet shape and powder density)	15 to 20 Kgs	60 to 75 Kgs	200 to 250 Kgs	500 to 600 Kgs	1000 to 1200 Kgs	1500 to 2000 Kgs
Pan Mouth Diameter	275 mm	400 mm	450 mm	600 mm	700 mm	800 mm
Pan Speed (Variable)	1-24 rpm	1-24 rpm	1-16 rpm	1-16 rpm	1-10 rpm	1-10 rpm
Drive Motor	1 HP	2 HP	3 HP	5 HP	10 HP	20 HP
Exhaust Fan Motor	1 HP	3 HP	5 HP	7.5 HP	10 HP	15 HP
Hot Air Fan Motor	0.5 HP	2 HP	3 HP	5 HP	7.5 HP	10 HP
Washing Pump Motor	1 HP	1 HP	1 HP	1 HP	1 HP	1 HP
Hot Air Temperature (At 3 to 5 kg/cm² Steam Pressure)	10°- 90° C	10°- 90° C	10°- 90° C	10°- 90° C	10°- 90° C	10°- 90° C
Water Consumption for Washing Approx	50 Lts	75 Lts	100 Lts	150 Lts	250 Lts	350 Lts

Special Features

We Have In-Corporated Special Features In The Solid Coating Pan As Follow.

Spray With Up/Down Movement Parmates Operated To Maintain Beta Sizeand Product. This Can Moved Up/Down Min.And Max. As Per Requarment. Which Is Optained To Perfection
Specially Designed Screw Type Baffles Which Enables Which, Enables The Movement Of Raw Material Through Screw For Boundry Sugar/ To For Pallets.
For Pallet We Have In-Corporated An Vending Machine Inside The Pan To With The Powder And Sugar Uniformally Which Yields A Better Reset And Reduces Druging Efficiency Which Saves Consumption For Utilities.
For Tablet The Film Coating, Sugar Coat, Enteric Coating, Pallet Coater, Seed Loads, The Design Offers A Better Yield With Atmost Finishing Product Minimizing The Electricty And Its Consuption, System Consumption Etc.
For Seed Coating, Special Feature Is Provided For Direct Wall Heating An Cooling.
A Specials Feature Is Provided With Vibrating Pads Mounted At The Solid Coating Pan To Avoid Powder Accumulator As The Pan And It Is Being Controlled By Plc/ Hmi System As Per Requirement.
The coating drum is a solid wall structure. Above F0.1 mm tablet and sugar seed coating, versatile in use
It has a specially structured air distributing system. The air inlet pipes can be interchanged rotation according to the needs.
Different materials are equipped with different air paddles. The paddles can be embedded into or taken off from the material according to technology needs.
It has a special cleaning and discharge unit
It has all the features of high-efficiency coating machine.

Salient Features

Obtional Features

Wet Scrubber For exhaust air system
Dry Dust Collector For exhaust air system
Dehumidifier for Humidity control in inlet air system
Steam or Electric Heat Exchanger
Tablets charging by bin loader or powder transfer system

Pellets Coating Machine
