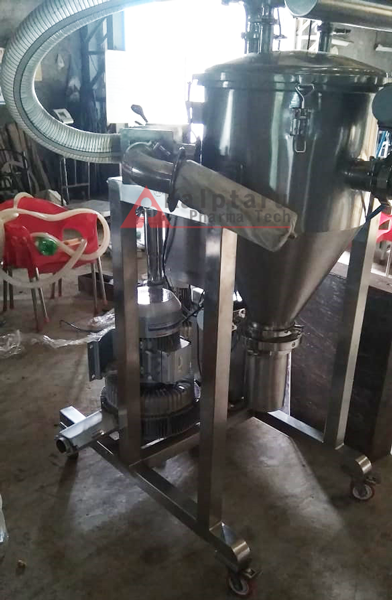

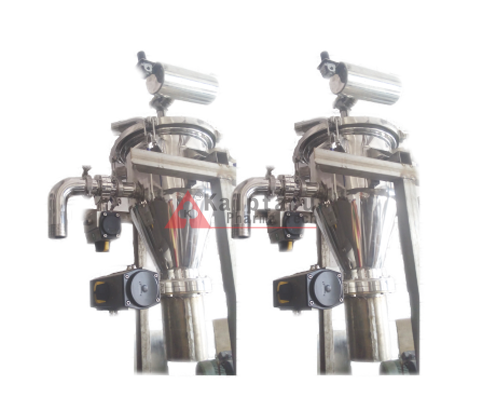

Powder Transfer System

Major Three Cycles

The Total System Is Timer Based. There Are Major Three Cycles In The System

•   filter clean- in built filter with 5 micron bag filter. it will operate through pulse jet system.
•   convey cycle- after completion of filter clean cycle based on time setting in timer automatically convey cycle will start up to pre set time.
•   discharge cycle- after completion of convey cycle the discharge cycle will take place and load the granules or dry powder in to ipc.

Technical Design Specification

•   Convey receiver is manufactured from SS 316.
•   Distance piece is manufactured from SS 316.
•   Sequential timer based air blasted filter cleaning system.
•   Filter made from non-woven fabric, & washable.
•   Filter Assembly and Fine Collection port are with toggle clamp, which eliminates the need of spanner for cleaning and hence reduce the cleaning changeover time.
•   Vacuum source is a dry type geared rotary blower housed in a cast iron body with require Power source.
•   Vacuum source is having silencer at suction and discharge port to reduce the noise level.
•   Vacuum source is equipped with a suction air filter to prevent the entry of foreign
•   Vacuum Safety Valve for equipment safety.
•   Vacuum Gauge and isolator valve on the vacuum power source.
•   Vacuum regulating valve at the vacuum power source to maintain the process
•   Control Panel will be manufactured from SS 304 having dust proof construction.
•   Control Panel is sequential timer base having 4 - operation cycles.
•   Material and Convey line is through static conductive, Non toxic flexible hose pipe, Total 40 Feet length is considered.
•   Advance PLC Controls system with HMI- color Touch screen provided of Allen Bradley/ Siemens/Mitsubishi make for complete automatic Powder Transfer process and batch data receipt management .

Machinery Application

In which Machinery Or Application we charge through our "Powder Transfer Systems".

•   Rotary Tableting Compression Charging System.
•   Roll Compactor Charging System.
•   Fluid Bed Drayer Unloading System.
•   Rapid Mixer Granulator Charging System.
•   Blander Charging System.
•   Multi- Mill / Cone Mill Inline Charging System.
•   IPC Bin Loading - Unloading System.
•   Vibro Shifter Charging System.
•   Sechet Jaar Filling System.
•   Jumbo Bag Loading - Unloading System.
•   Storage Tank Charging System.
•   Reactor Tank Charging System.

Note: (Occasionally) Application should be change as per clients' requirement.

(Need to Product or Material in Powder Form, Material Bulk Density should be Minimum in 0.3 g/ml.)

Technical Specification

Use & Advantage

•   Applicable in WHO / USFDA norms.
•   PLC Based HMI / MMI system.
•   Easy Operating System.
•   Mobile Trolley Facility.
•   Wall Hanging Arrangement.
•   Zero Manpower requirement.
•   Zero Dusting.
•   Changeover time require maximum 15 - 20 Minutes.
•   Durability: 24 x 7
•   Low Maintenance.
•   Design should be change as per client requirement.
•   Change Parts available in short Time.
•   Plug & Play System
